Bandpass Filter – 803768

Bandpass Filter - Good VSWRRF Bandpass Filter

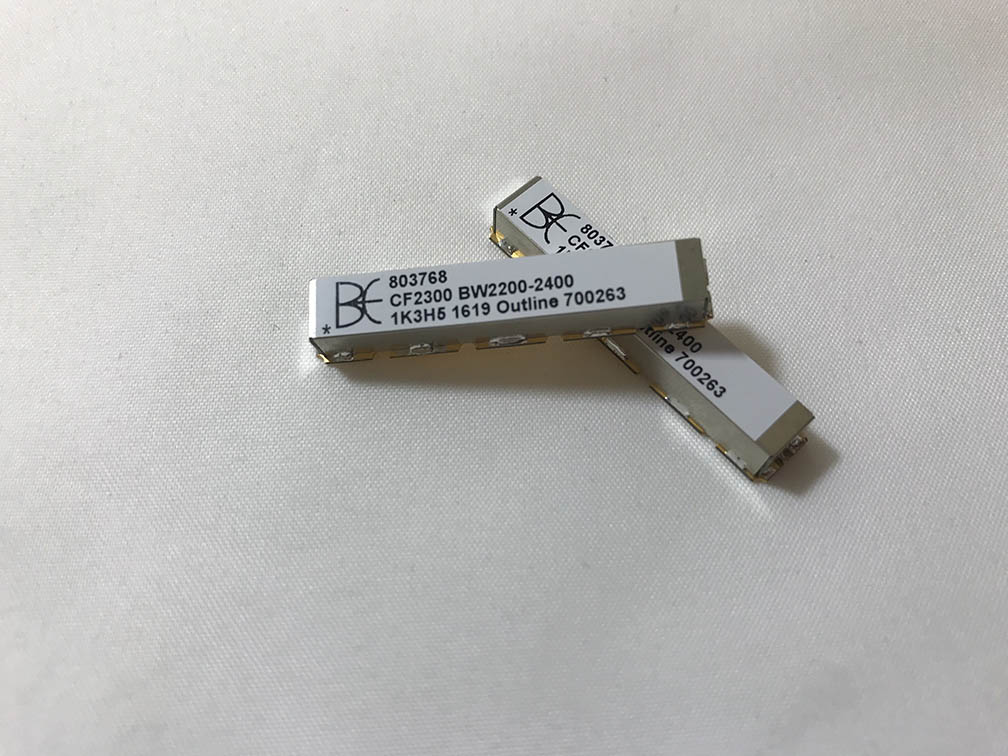

This particular bandpass filter contains the standard Bree filter reliability when it comes to consistency and performance within a small package. Across the 200 MHz passband we maintain a less than 1 dBc insertion loss as well as a greater than 14 dB return loss. The Bandpass filter maintains its rejection at the desired locations and is stable to the additional design rejection specifications. This custom bandpass filter is just another type of filter that we at Bree have confidence in designing and fabricating.

Package Size: 1.50 x 0.30 x 0.20 Inches

Configuration: Surface Mount

Insertion Loss: <1.0 dBc across the Passband

Return Loss: >14.0 dB across the Passband

Rejection: >50dBc at the desired specifications

If you are in need of a custom bandpass filter please feel free to reach out to us at Bree Engineering, and we will be happy to assist in any way possible.
