Bandpass Filter – 803750

Bandpass Filter - Low Insertion LossBandpass Filter

This particular Bandpass filter, displays our ability to adjust to our customers’ requirements and follow through with reliable and robust designs. This particular bandpass filter design allows for high insertion loss at the expense of low passband variation

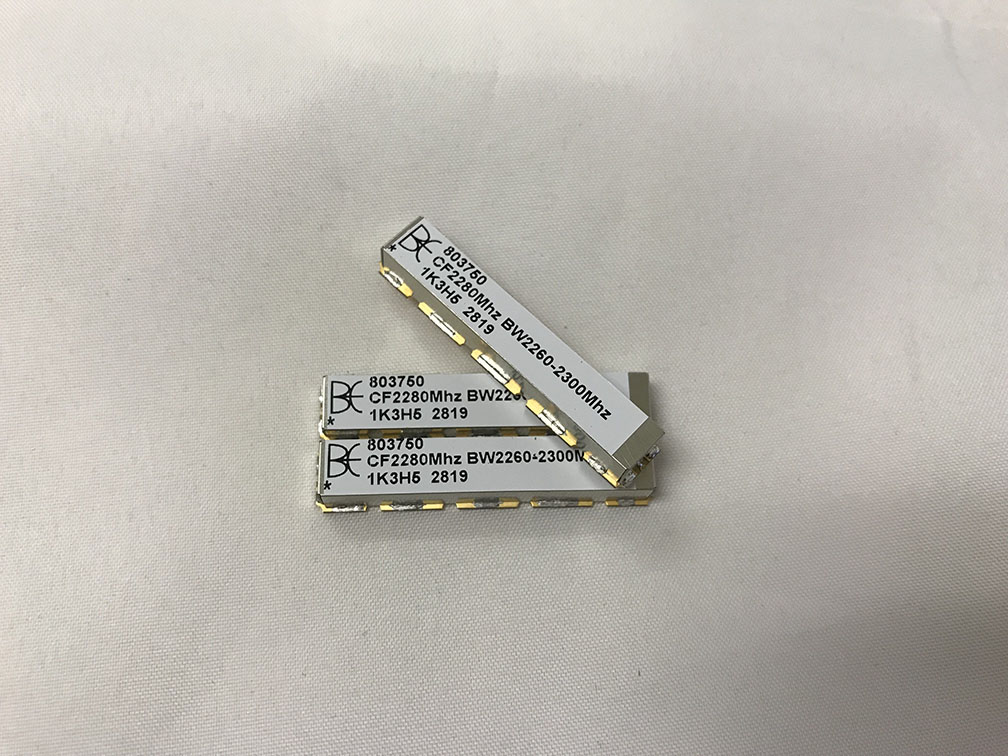

Bree Bandpass Filter 803750 contains a narrow bandwidth and this results into a direct increase in insertion loss due to the passband cut off locations. This type of bandpass filter typically comes with heavy insertion loss, but good isolation relatively close to the passband.

As with all of our Filters here at Bree Engineering the design is custom and tailored to the specifications of our clients. We are always striving to do our best to design, build and tune filters of any type.

Please see the attached Filter Test Data for the performance of the filter.

Package Size: 1.50 x 0.30 x 0.20 Inches

Configuration: SMT

Insertion Loss:

<8.0 dBa at Center Frequency 2280 MHz

<1.0 dBc 2260 to 2300 MHz

Return Loss:

>14 dB 2260 MHz – 2300 MHz


>60 dBc 2190 MHz

>50 dBc 2370 MHz

Please feel free to reach out to us at Bree Engineering with any questions or comments regarding any of our custom filters and we will be happy to answer them.

Outline Drawing.pdf
Test Data CH1.pdf
