Bandpass Filter

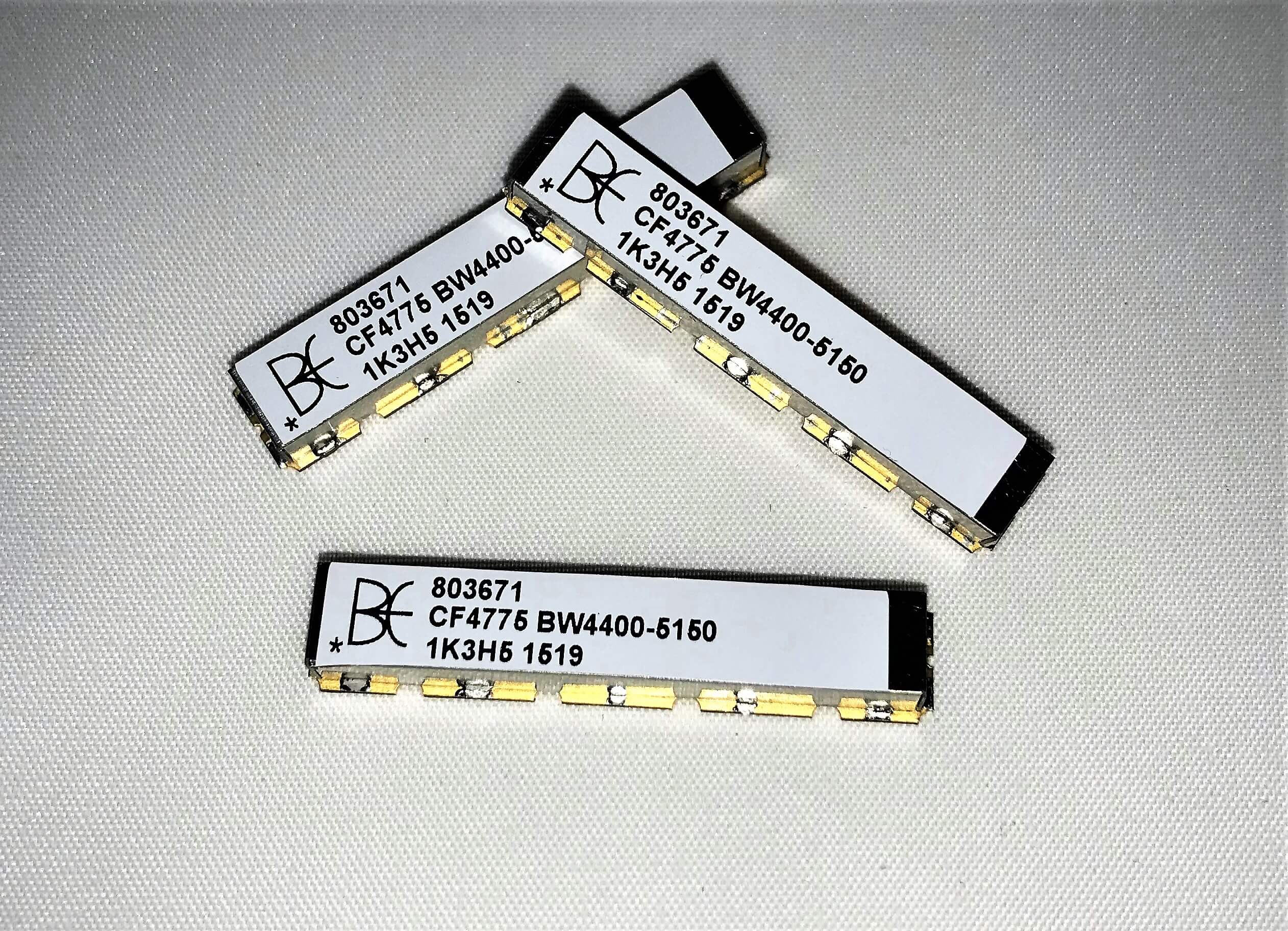

A physical representation of a surface mount bandpass rf filterBandpass Filter

803671 – Bandpass Filter

A standard custom bandpass filter made here at Bree Engineering. We target to match the specifications that our customers ask of us, and this tailored bandpass filter is no different. We are well within the desired specifications and this particular filter maintains a consistent Insertion Loss at Center Frequency as well as a steady 1 dBc across the passband. This particular bandpass filter also holds the rejection points very well with relatively tight skirts.

Package Size: 1.50 x 0.30 x 0.20 Inches

Configuration: SMT

Insertion Loss at Center Frequency: 3 dBa 4775 MHz

Passband Insertion Loss: 1 dBc 4400 MHz – 5150 MHz

Return Loss: >14.0 dB 4400 MHz – 5150 MHz

Rejection: >60dBc 4030 MHz

Rejection: >60dBc 5560 MHz

Please feel free to reach out to us at Bree Engineering with any questions or comments regarding any of our custom filters and we will be happy to answer them.

Outline Drawing.pdf
Test Data CH1.pdf
