Multiplexed GPS Band Splitter

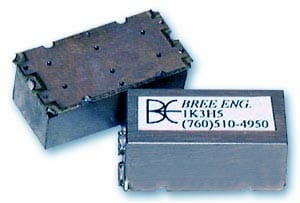

A series of filters includes a surface mount package with a common input to high pass and low pass filters. This configuration is used to split the L1 and L2 GPS bands. Passband losses are less than 0.7 dBa and channel to channel isolation is 30 dBa minimum. The inputs and outputs can be specified at the time of purchase to accommodate many board configurations. The unit will sustain a Sn63 reflow environment. The size is 1.0 x 0.5 x 0.4 inches.
