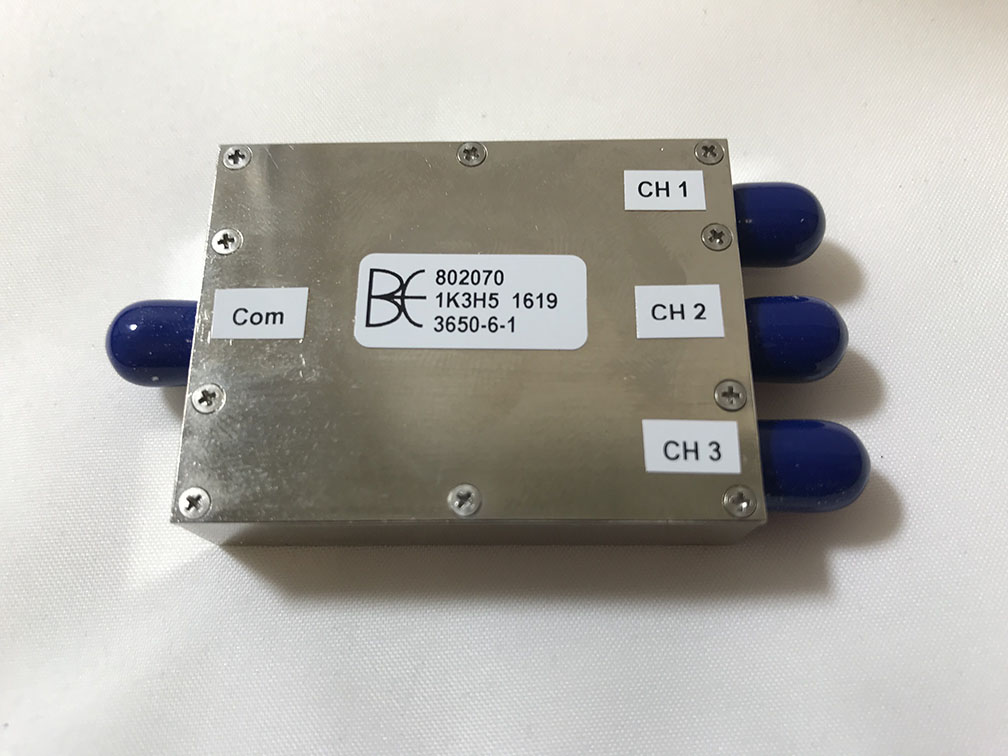

802070 – Triplexer
This triplexer utilizes three output ports which contain three different types of filters, lowpass, high pass, and bandpass. The three ports work simultaneously to maintain their respective specifications per filter type.
This particular Triplexer allows for consistent VSWR and low loss across the passbands. As with similar designs we have been able to maintain this type of performance based on the custom specifications provided to us. Based on the design specifications we will adjust our efforts to ensure that the channel performance is reliable per the desired specifications.
As with all of our Filters here at Bree Engineering the design is custom and tailored to the specifications of our clients. We are always striving to do our best to design, build and tune Filters of any type.
Please see the attached Filter Test Data for the performance of the filter.
Package Size: 2.00 x 1.50 x 0.50 Inches
Configuration: SMA-F Connectors
Insertion Loss:
Channel 1: <1.0 dBa 50 MHz – 220 MHz
Channel 2: <1.0 dBa 1600 MHz – 2200 MHz
Channel 3: <1.0 dBa 3500 MHz – 6000 MHz Return Loss: Channel 1: >20 dB 50 MHz – 220 MHz
Channel 2: >18 dB 1600 MHz – 2200 MHz
Channel 3: >16 dB 3500 MHz – 6000 MHz
Rejection:
Channel 1: >40 dBc 1600 MHz – 2200 MHz
Channel 1: >20 dBc 3500 MHz – 6000 MHz
Channel 2: >20 dBc 50 MHz – 220 MHz
Channel 2: >20 dBc 3500 MHz – 6000 MHz
Channel 3: >20 dBc 50 MHz – 220 MHz
Channel 3: >40 dBc 1600 MHz – 2200 MHz
