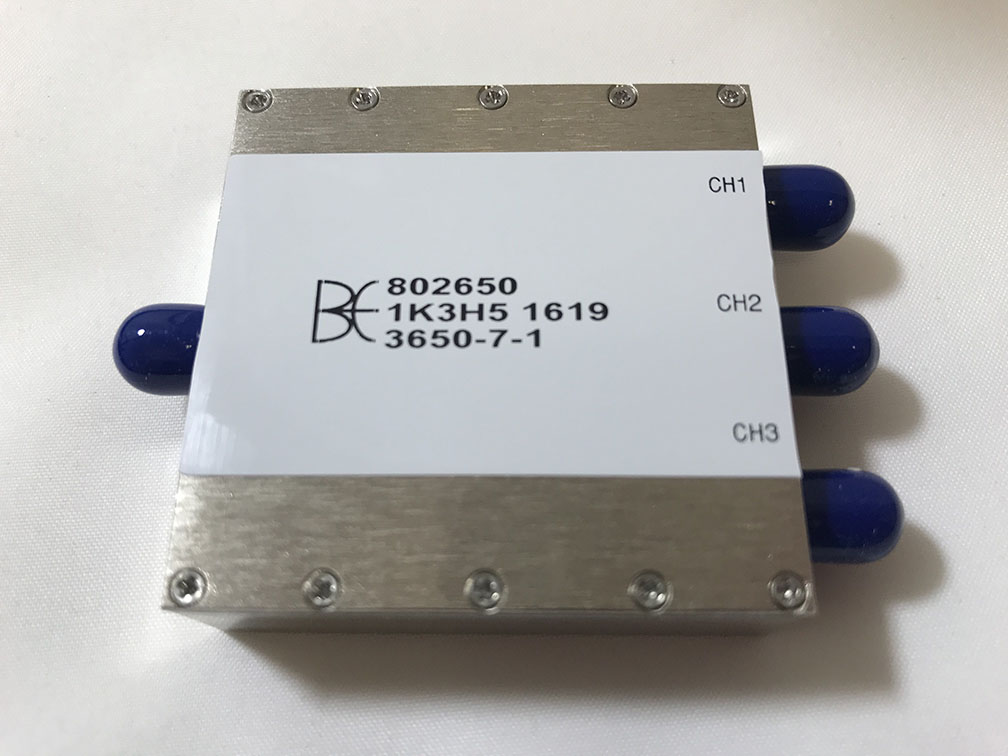

Triplexer – 802650

Multiplexer – Triplexer

This triplexer utilizes three output ports which contain three different types of filters, lowpass, high pass, and bandpass. The three ports work simultaneously to maintain their respective specifications per filter type.
This particular Triplexer allows for consistent VSWR and acceptable losses across the passbands. As with similar designs we have been able to maintain this type of performance based on the custom specifications provided to us. This particular design allowed for us to maintain portions of the passband and stopband spanning from 0 GHz all the way to 7.86 GHz based on the channel.
As with all of our Filters here at Bree Engineering the design is custom and tailored to the specifications of our clients. We are always striving to do our best to design, build and tune Filters of any type.
Please see the attached Filter Test Data for the performance of the filter.
Package Size: 2.00 x 2.00 x 0.60 Inches
Configuration: SMA-F Connectors
Insertion Loss:
Channel 1: <0.50 dBa 0 MHz – 2620 MHz
Channel 2: <0.75 dBa 5000 MHz – 5240 MHz
Channel 3: <0.70 dBa 7500 MHz – 7860 MHz Return Loss: Channel 1: >18 dB 0 MHz – 2620 MHz
Channel 2: >18 dB 5000 MHz – 5240 MHz
Channel 3: >18 dB 7500 MHz – 7860 MHz
Rejection:
Channel 1: >60 dBc 5000 MHz – 7860 MHz
Channel 2: >60 dBc 0 MHz – 2620 MHz
Channel 2: >60 dBc 7500 MHz – 7860 MHz
Channel 3: >60 dBc 0 MHz – 5240 MHz

Test Data CH1.pdf
Test Data CH2.pdf
Test Data CH3.pdf
