Data Link Filter

Data Link Filter

800019

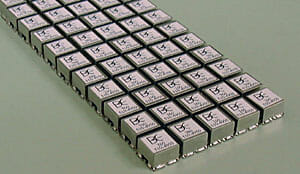

A series of miniature filters includes a surface mount data link transmitter clean up filter. This configuration has a low loss of 1.0 dBa at 2150 MHz and 30 dBc at 1.0 GHz and 3.0 GHz. The location of the miniature input and output pads can be specified at time of purchase to accommodate many board configurations. The unit will survive an Sn63 reflow environment. The size of model number 800019 is 0.5 x 0.5 x 0.3 inches.
