High Pass – High Power Filter

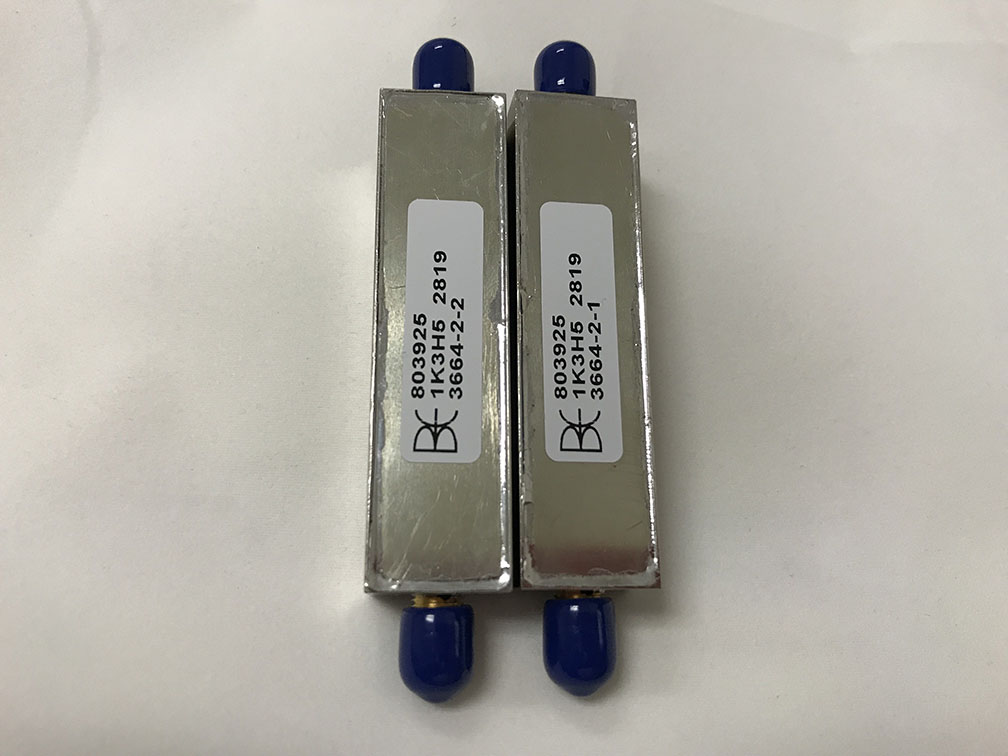

Part number 803925 is a standard high pass filter with a cutoff at 500 MHz maintaining its passband out to 1400 MHz. This high pass filter also has its isolation close to the passband providing 70 dB of rejection 360 MHz and below. The main design behind this particular high pass filter is the High Power Rating required. This filter required a 200 Watt operating power and this type of requirement leads to some physical design and hardware changes that make this filter unique.
As with all of our Filters here at Bree Engineering the design is custom and tailored to the specifications of our clients. We are always striving to do our best to design, build and tune filters of any type.
Please see the attached Filter Test Data for the performance of the filter.
Package Size: 2.50 x 0.65 x 0.50 Inches
Configuration: SMA-F CONNECTORS
<1.0 dBa 500 to 1400 MHz
>14 dB 500 to 1400 MHz
>70 dBc 360 MHz
Power Rating ( CW )
