Telemetry Bandpass Filter

2042.5 MHz Telemetry Bandpass Filter

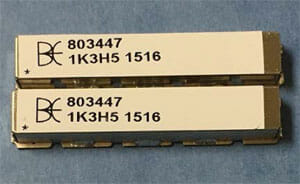

Bree Engineering P/N 803447 is an example of our high performance lumped element filters that can be customized to your requirements. This filter passes 1900 MHz to 2185 MHz with 14.0 dBa minimum return loss in the passband. The filter rejects frequencies below 1700 MHz and above 2380 MHz by more than 60 dBc. The surface mount package size is 1.5 X 0.3 X 0.2 inches. (Other configurations are available.)



Test Data Sheet, pdf
Outline Drawing, pdf
