Triplexer – 802861

Multiplexer – Triplexer

This triplexer utilizes three output ports which contain three different types of filters, lowpass, high pass, and bandpass. The three ports work simultaneously to maintain their respective specifications per filter type.

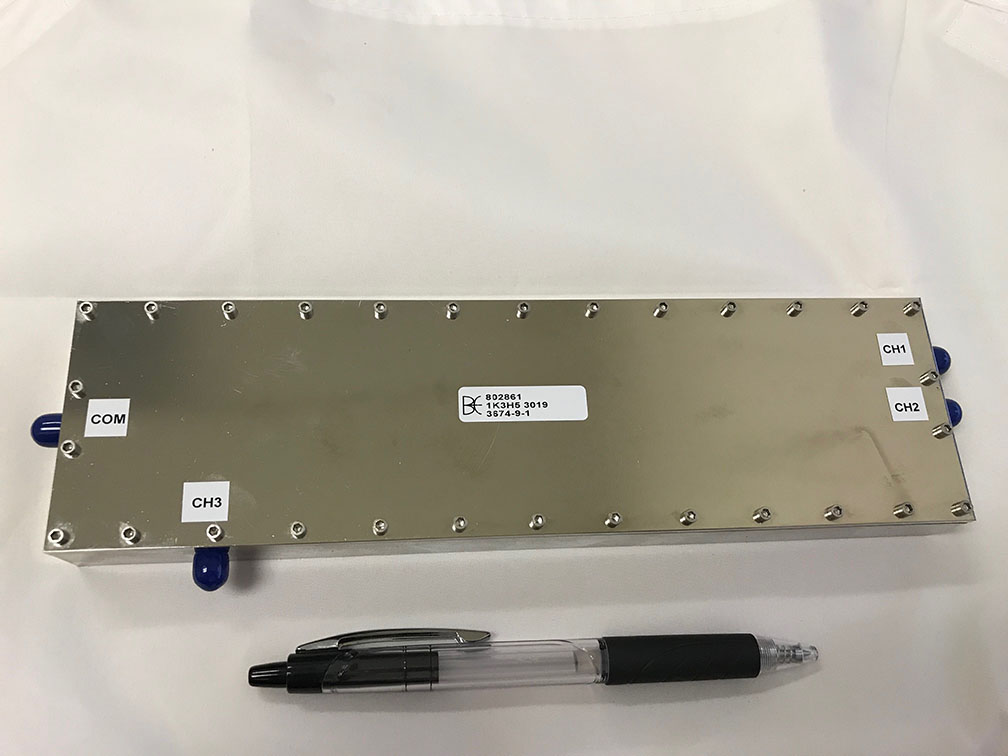

This particular triplexer is fairly large coming in at 9 inches in length. This particular devices requires Power handling capabilities which leads to some design adjustments to meet the desired specifications. Each channel holds the same insertion loss of less than 1.1 dB and greater than 14 dB return loss across the passbands. The isolation between channels is the shining factor between this though, because it holds 60 dB isolation between the three provided channels. Due to the nature of the power handling capabilities and the relatively high operating frequency range, this particular triplexer contains some parasitic communication amongst components that is addressed in the tuning and assembly stage.

As with all of our Filters here at Bree Engineering the design is custom and tailored to the specifications of our clients. We are always striving to do our best to design, build and tune filters of any type.

Please see the attached Filter Test Data for the performance of the filter.

Package Size: 9.00 x 2.50 x 0.87 Inches

Configuration: SMA-F Connectors

Insertion Loss:

Channel 1: <1.1 dBa 0 MHz – 400 MHz

Channel 2: <1.1 dBa 1200 MHz – 2800 MHz

Channel 3: <1.1 dBa 3500 MHz – 7800 MHz

Return Loss:

Channel 1: >14 dB 0 MHz – 400 MHz

Channel 2: >14 dB 1200 MHz – 2800 MHz

Channel 3: >14 dB 3500 MHz – 7800 MHz


Channel 1: >60 dBc 1200 MHz – 7800 MHz

Channel 2: >60 dBc 0 MHz – 500 MHz

Channel 2: >60 dBc 3500 MHz – 7800 MHz

Channel 3: >60 dBc 0 MHz – 2800 MHz

Outline Drawing.pdf
Test Data CH1.pdf
Test Data CH2.pdf
Test Data CH3.pdf
